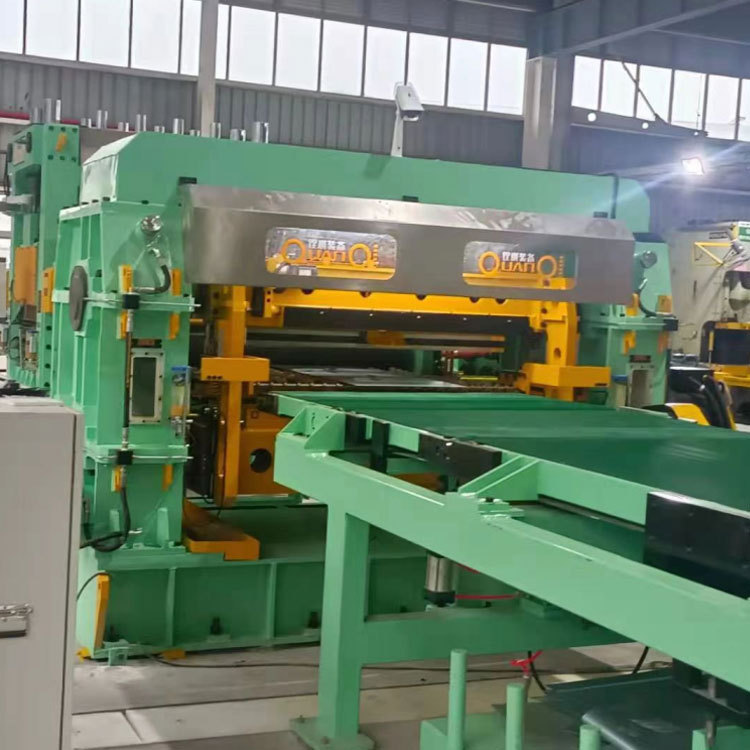

Stainless Steel Coil Rotary Shear Line

  • QUANQI
  • CHINA
  • 2018
  • 10 Lines/month

Stainless Steel Coil Rotary Shear Line
1, copper gear in leveler
2, forged alloy steel roller
3, servo motor adjust leveler upper set and bottom set
4, Bottom backup roller adjust by 5 set motor
5, imported sport control system
6, rotary shear blade gap adjustment by servo motor
7, advanced control system
8, Camera video control system

Get a quote? Send Inquiry Now

Stainless Steel Coil Rotary Shear Line

Line composition: Coil saddle---paper winder---coil loading car---hydro decoiler---pinch roller  and shear---pinch roll and 6 HI leveler---sizing feeder with PVC coater/paper coater---rotary shear---belt conveyor---stacker(2 sets)---hydro system---electric system


Machine parameters

1, Coil width: 300-1600mm                                           2, Coil thickness: 0.3-3.0mm

3, Coil weight: 25 T                                                        4, Line speed: 0-80m/min

5, Length accuracy: +-0.3mm                                       6, Diagonal accuracy: +-0.5mm

7, Sheet length range: 500-6000                                  8, sheet stacker height: 500mm







 coil rotary shear line


About us

Guangdong Quanqi Machinery Equipment Co., Ltd. is a newly established high-end brand in China, specializing in R & D, production and manufacturing of coil slitting line, cut to length line, rotary shear line, aluminum and copper steel cutting line manufacturer and exporter. In combination with its own team advantages and advanced production management system, the company has formulated long-term R & D objectives, tasks and export instructions, requiring all products and spare parts produced to be higher than the national standards, higher than Taiwan's mechanical properties, and in line with the process and appearance of the top European and American manufacturers. The R & D team inherits the original Taiwan Tengqi process, and updates the design process in combination with customer feedback to achieve the goal of exceeding The advanced level of machinery and equipment in Taiwan. As a pure technology-based production and manufacturing enterprise, we regard products as art, and we will carve out the most perfect art for each customer, so that the products have the most stable and long-term use and life
The company has a scale of 15000 square meters. It is a large-scale processing and manufacturing enterprise base in the industry. There are 5 core designers, 5 senior sales engineers, 1 production inspector, 4 quality inspectors, 4 senior installation and commissioning engineers, 38 production employees, a total of 65. The company requires all load-bearing archways to be tempered and reprocessed, using the machining center for precision machining, all gear hobbing, gear grinding and re nitriding, so that the gear contact position can reach the optimal contact and have the longest life Other components such as life and mechanical properties are manufactured to the highest standards in the industry
Soon after the establishment of the company, it caused great repercussions in the industry and quickly accumulated a good reputation, because we strictly abide by the contract with customers, and our consistent purpose is to make customers clearly understand the products they want to purchase and get the products specified in the contract, without any deviation in understanding. Our team is ready for 24-hour service, which is basically committed to be achieved within 12 hours in Guangdong Province and 24 hours in other provinces. Foreign customers depend on the situation. Our service is to solve customer problems and customer needs in the fastest and most efficient way in the form of express delivery. We believe that customer satisfaction is our greatest pride.
I believe that under the leadership of general manager Li, we will go further and sell better. Our shareholder team solemnly promises: we have made bad products for our customers, and we have taken the signboard to go home and plant the land. As a cutting-edge manufacturer in the industry, we know the importance of every production detail and the accuracy of every assembly process. We dare not neglect, check every level and relax. We can create a better future for Guangdong Quanqi equipment only by stepping forward, down-to-earth and giving the best products to you.

rotary shear line coil rotary shear line


How we works for each component to handle the line quality of Metal slitting machine

1, process the main components by our CNC machine that imported from USA

2, Main shaft choosing forged 42CrMo alloy steel to strengthen its mechanical ability

3, High speed feedback of services.

4, Advanced electric control system, Only one netwire out from main cabinet

5, Heavy steel body with tempered and quenched then sand blasting to remove surface oil and rust


Coperated famous buyers with us

rotary shear line
